德國“ELORA－易利拿”精密扭力／扭矩工具及設備．TORQUE TOOLS & INSTRUMENTS
電子扭力／扭矩測量儀．ELOTRONIC TORQUE METERS ETM |
|
|
Elora 德国易利拿扭力工具系列 -> 電子扭力／扭矩測量儀．ELOTRONIC TORQUE METERS ETM |
產品名稱．Product Item：電子扭力／扭矩測量表．ELOTRONIC TORQUE TESTERS STT
2450 電子扭力／扭矩測量表。
電子扭力／扭矩測量表是一個固定式測試單位為定標和檢查點擊扭力／扭矩板鉗／扳手。
電子扭力／扭矩測量表是適當的為水平和垂直的使用。
測量的準確性是+/- 1%。
顯示可以為容易被轉動來閱讀數據。

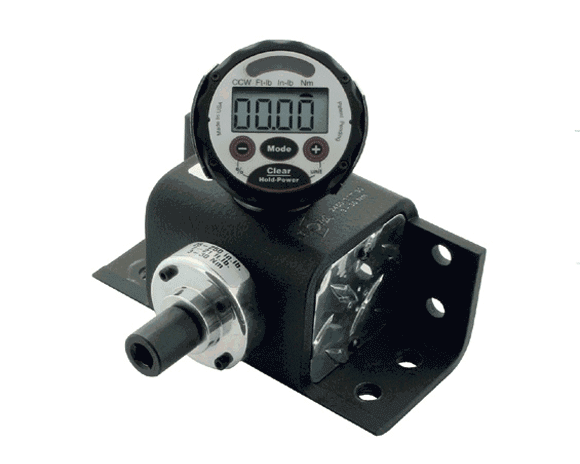

2450 ELOTRONIC Torque Testers STT.
The ELOTRONIC STT is a stationary Test Unit for calibration and checking of click-torque wrenches.
The ELOTRONIC STT is suitable for horizontal and vertical use.
The measuring accuracy is +/- 1%.
The display can be turned round for easy reading.
產品型號．Model Number：
NO:2450-STT-11．NO:2450-STT-12．NO:2450-STT-30．NO:2450-STT-350．NO:2450-STT-850

| 2450 |
電子扭力測量表
ELOTRONIC Torque Testers STT |
|
Application |
測試及調較扭力工具．
for testing and adjusting of torque tools (also suitable for click type torque wrenches) |
| Type |
reading in Nm, ft.lb or in.lb,
large 4 digits numerical display,
display can be swivelled into perfect position,
acoustical and optical signal via 3 LED,
3 different modes of operation (Track Mode, Peak Hold and First Peak),
精確度為 +/- 1%
accuracy +/- 1% |
|
Standard |
hexagon drive acc. to DIN 3126 Form C 6.3/ISO 1173
square drive acc. to DIN 3120/ISO 1174 |
|
規格．SPECIFICATIONS：
|
Stock-No. |
Hexagon
Drive |
Square
Drive |
Range
Nm |
Range
in.lb. |
Range
ft.lb. |
Packing
pcs. |
Weight
g |
|
2450-STT 11 |
1 / 4 " |
- |
1 - 11 |
8 - 97 |
0.74 - 8.1 |
1 |
2,160 |
|
2450-STT 12 |
- |
3 / 8 " |
1.2 - 11.5 |
10 - 100 |
0.85 - 8.5 |
1 |
2,160 |
|
2450-STT 30 |
- |
3 / 8 " |
3 - 30 |
25 - 250 |
2.1 - 21 |
1 |
2,160 |
|
2450-STT 350 |
- |
1 / 2 " |
30 - 350 |
300 - 3000 |
25 - 250 |
1 |
2,300 |
|
2450-STT 850 |
- |
3 / 4 " |
81 - 815 |
720 - 7200 |
60 - 600 |
1 |
9,300 |
＊配件．ACCESSORIES：

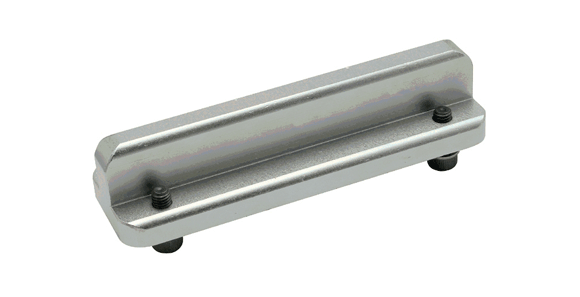

產品名稱．Product Item：安裝架（台式）．FIXING DEVICES FOR BENCH VICES
產品型號．Model Number：NO:2450-SB
| 2450-SB |
安裝架
Fixing Device For Bench Vice |
|
Application |
裝配 NO:2450-STT 電子扭力測量表．
for fixing of ELOTRONIC Torque Tester NO:2450STT in Bench Vice 1495 and 1500. |
| Type |
鍍鉻．
Chrome Plated. |
|
Material |
Chrome-Vanadium 31 CrV3, Code-No.1.2208. |
|
規格．SPECIFICATIONS：
|
Stock-No. |
Width
mm |
Packing
pcs. |
Weight
g |
|
2450-SB |
165 |
1 |
1,210 | |
|
|
