德國“ELORA-易利拿”精密扭力/扭矩工具及設備.TORQUE TOOLS & INSTRUMENTS


電子扭力/扭矩測量儀.ELOTRONIC TORQUE METERS ETM
Elora 德国易利拿扭力工具系列 -> 電子扭力/扭矩測量儀.ELOTRONIC TORQUE METERS ETM

產品名稱.Product Item:電子扭力/扭矩測量儀.ELOTRONIC TORQUE METERS ETM

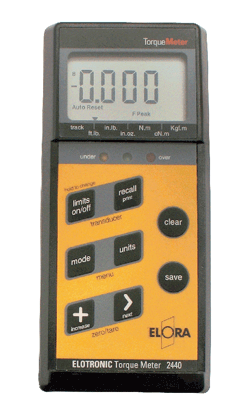

2440“易利拿”電子流動扭力/扭矩測量儀。
新的扭力/扭矩工具之世代的心臟。
配合流動式傳感器型號:2445-MTT 一起使用,電子流動扭力/扭矩測量儀準備好任何地方靈活使用。
資料/數字可以被存放,打印或者以後寄存在個人電腦,
以準確性為 +/- 1%(閱讀數值)。
測量在6個不同單位可能。
3個運作的方式。
設置誤差值或極小或最大值的可能。
2440 ELORA-ELOTRONIC ETM Mobile-Torque-Meters.
The heart of the new Torque Tool Generation.
In connection with mobile transducers type 2445-MTT the ELORA-ELOTRONIC ETM is ready for flexible use anywhere.
The values can be stored, printed or later sent to PC,
with an accuracy of +/- 1% of the reading value.
Measurement in 6 different units possible.
3 working modes.
Preset of tolerances or min/max values possible.

產品型號.Model Number:NO:2440-ETM




2440 電子扭力/扭矩測量儀
ELOTRONIC Torque Meters ETM

Application

裝配 NO:2445-MTT 流動式傳感器一起使用 或 NO:2446-STT 傳感器一起使用.
for use with Stock-No. 2445-MTT ELOTRONIC Transducer MTT or Stock-No. 2446-STT ELOTRONIC Transducer STT,
用作測試和定標扭力工具.
for testing and calibration of torque tools.

規格.SPECIFICATIONS:

Type



Display:

Large display for easy reading.

Sample Rate:

Approx. 8,000 samples/sec.

Power:

9 V block battery (NiCD-Akku) respect,
Power cable incl.

Storage:

up to 1,350 torque values in format data-no., torque value, unit.

Communication:

direct to printer or PC via serial port (protocol: RS232C 4800 BPS, 8, 1, n) cable incl.

Mode:

Track Mode,
Peak Hold,
and First Peak Hold.
(for calibration of "click"-type wrenches).

Setting of Tolerances:

Pre-set tolerances visible at all times on display.
Tolerance range to be pre-set between 1-99% respect. min. and max. value.

Display of Tolerances:

With 3 LED's and signal tone as follow:
yellow: bottom range,
greeen: in range,
red: over range of pre-set tolerance.

Erase of Display:

Automatically (pre-set time 1-9sec.) or manual erase.

Frequency Filter:

5 pre-set filter frequencies:
170 Hz, 250 Hz, 500Hz, 1500Hz and 3600 Hz
(for calibration of power tools.)

Transducer Recogition:

配備聰明精片,即插即用,或手動調較.
By built-in smart chip (plug and play) or manual calibration.
精確度為 +/- 1%
accuracy +/- 1%

Stock-No.

Width
mm

Height
mm

Depth
mm

Packing
pcs.

Weight
g

2440-ETM

83

185

32

1

420
