日本"NILE-利來"氣動工具.AIR TOOLS
日本“MUROMOTO”室本鐵工株式會社旗下工業用氣動產品系列.
*他們徹底改良了現代工業生產上遇到之切割,壓線,屈曲整形及打孔技術!
*具備多功能用途.所有刀片可以自由選配地運作,大大提高生產效率!

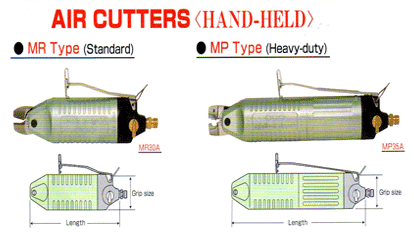

手提式氣剪.AIR CUTTERS FOR HAND-HELD
Nile 日本利来风剪

產品名稱.Product Item:(重裝)氣剪.AIR CUTTERS(HEAVY DUTY STANDARD TYPE)
產品型號.Model Number:MP35A
*特點.FEATURES:

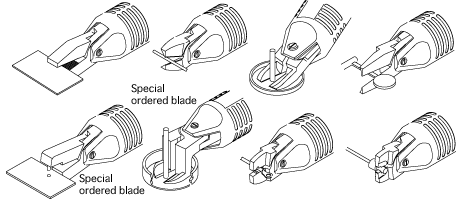

.These cutters have the widest range of usage. Because they are powerful, they are able to perform many types of work including cutting, crimping, punching and caulking just by changing the blades.



*壓線類型.FOR CRIMPING TYPE:
.Non insulated connector:
.Insulated connector:
.Wire connector insulated:
.Reel connector:
*規格.SPECIFICATIONS:

Model No. Overall length
(mm)
Weight
(g)

Grip Size
Diameter (mm)

Air Consumption
(cm3/stroke)
Power (approx.)
(N)
Air pressure
(MPa)
MP35A 268 830 56 956 4,410 0.5~0.6
*刀片型號.BLADE NUMBER:
Model No. Blade No.
*Carbide tipped
*超硬碳化刀頭
Cutting capacity ( Diameter=mm )
Steel wire Copper wire Piano wire Crimping Plastics(Soft) Plastics(Hard)
MP35A S7P, S7PS, P8P, EP10P, CR8P 4.0 4.8
*Z8P, Z8PS, ZEP10P, ZCR8P 4.0 4.8 1.2
F9P, F9PS, FD9P 13.0 6.5
A8P, AR8P 2.0/5.5
*刀片類型(能切斷之材料).APPLICATION OF BLADES(for cutting materials):
.S-type Blades for copper.
.P-type Blades for steel.
.Z-type Blades for piano wire.
.EP-type Blades for steel.
.F-type Blades for plastics.
.FD-type Blades for plastics.
.CR-type Blades for steel.
.A-type Blades for crimping of non insulated.
.AR-type Blades for crimping of insulated.

*標準刀片.STANDARD BLADES:
.The shape used for MR30A is the basic shape of a standard blade.
.Although its applicable type is the MR type, a standard blade can also be used with the MP-type, MPL-type, MOS-type, etc., and also with the machine fitting types including MS, MSK, MSF, ML, MSR, CF, and CL.
.Sizes differ slightly for blades used for lead wire, iron wire and resin in the size table.

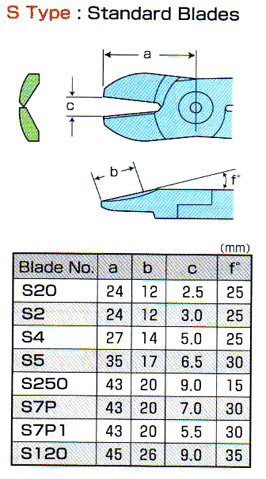

*標準型.S TYPE:
.刀片型號.Blade NO.:
  .S20,S2,S4,S5,S250,S7P,S7P1,S120.

*利邊式通用型.S~R TYPE:
.刀片型號.Blade NO.:
  .S4R,S5R,S7PR.

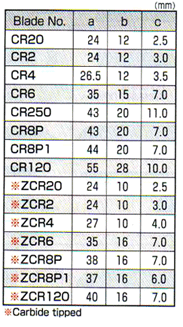

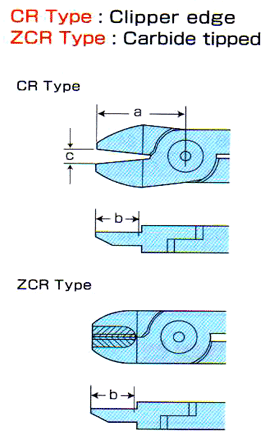

*蛇頭剪型.CR TYPE:
.刀片型號.Blade NO.:
  .CR20,CR2,CR4,CR6,CR250,CR8P,CR8P1,CR120.
(附有超硬碳化刀頭.ZCR TYPE:Carbide tipped.)
.刀片型號.Blade NO.:
  .ZCR20,ZCR2,ZCR4,ZCR6,ZCR8P,ZCR8P1,ZCR120.

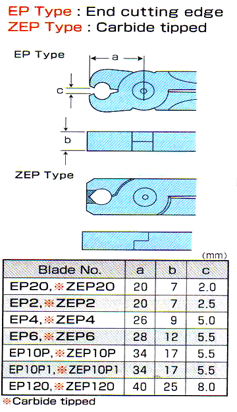

*頂端剪型.EP TYPE:
.刀片型號.Blade NO.:
  .EP20,EP2,EP4,EP6,EP10P,EP10P1,EP120.
(附有超硬碳化刀頭.ZEP TYPE:Carbide tipped.)
  .ZEP20,ZEP2,ZEP4,ZEP6,ZEP10P,ZEP10P1,ZEP120.

*重型.P TYPE
.刀片型號.Blade NO.:
  .P6,P8P,P8P1,P120.
*超硬碳化刀頭.Z TYPE:Cardide tipped for hard wire.
.刀片型號.Blade NO.:
  .Z20,Z2,Z4,Z6,Z8P,Z120.


*平身通用型.S~S TYPE:
.刀片型號.Blade NO.:
  .S20S,S2S,S4S,S5S,S250S,S7PS,S7P1S,S120S.
(附有超硬碳化刀頭.Z~S TYPE:Carbide tipped for hard wire.)
.刀片型號.Blade NO.:
  .Z20S,Z2S,Z4S,Z6S,Z8PS,Z120S.


*夾子型.Y TYPE:
.刀片型號.Blade NO.:
  .Y6,Y8P,Y120.

*水口剪.F TYPE:
.刀片型號.Blade NO.:
  .F10,F1,F3,F5,F250,F9P,F9P1,F120.
(附有超硬碳化刀頭.ZF TYPE:Carbide tipped.)
.刀片型號.Blade NO.:
  .ZF5.


*槓桿式水口剪.FD TYPE:
.刀片型號.Blade NO.:
  .FD10,FD1,FD3,FD5,FD250,FD9P,FD9P1.
(附有超硬碳化刀頭.ZFD TYPE:Carbide tipped for hard plastic.)
.刀片型號.Blade NO.:
  .ZFD5


*平身型水口剪.F~S TYPE:
.刀片型號.Blade NO.:
  .F10S,F1S,F3S,F5S,F250S,F9PS,F9P1S.
(附有超硬碳化刀頭.ZF~S TYPE:Carbide tipped for hard plastic.)
.刀片型號.Blade NO.:
  .ZF5S.


*長咀型水口剪.F~LS TYPE:
.刀片型號.Blade NO.:
  .F3LS,F5LS.

*幼邊型水口剪.FF TYPE:
.刀片型號.Blade NO.:
  .FF3,FF5.

*絕緣類壓線.A TYPE:
.刀片型號.Blade NO.:
  .A8P-1.25,A8P-2.0,A8P-5.5.

*過電類壓線.AR TYPE:
.刀片型號.Blade NO.:
  .AR8P-1.25,AR8P-2.0,AR8P-5.5.

-------------------------

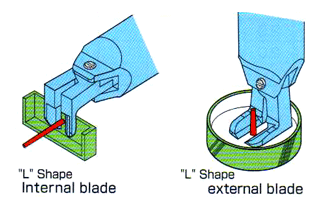

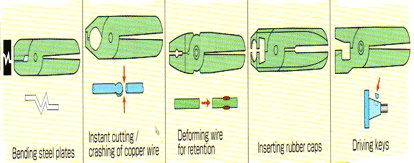

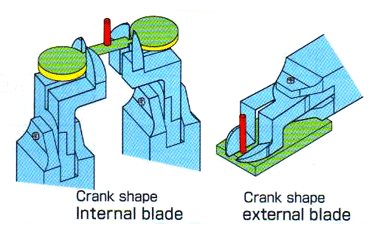

*特製刀片.SPECIAL BLADES:

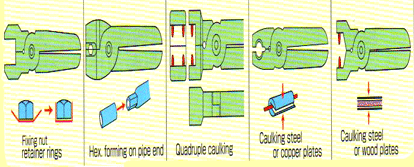

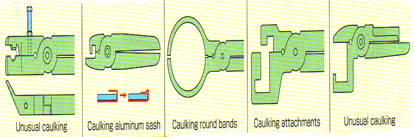

*CAULKING(for sash etc.)





*CAULKING/CRASHING/BENDING





*PUNCHING/CRIMPING
